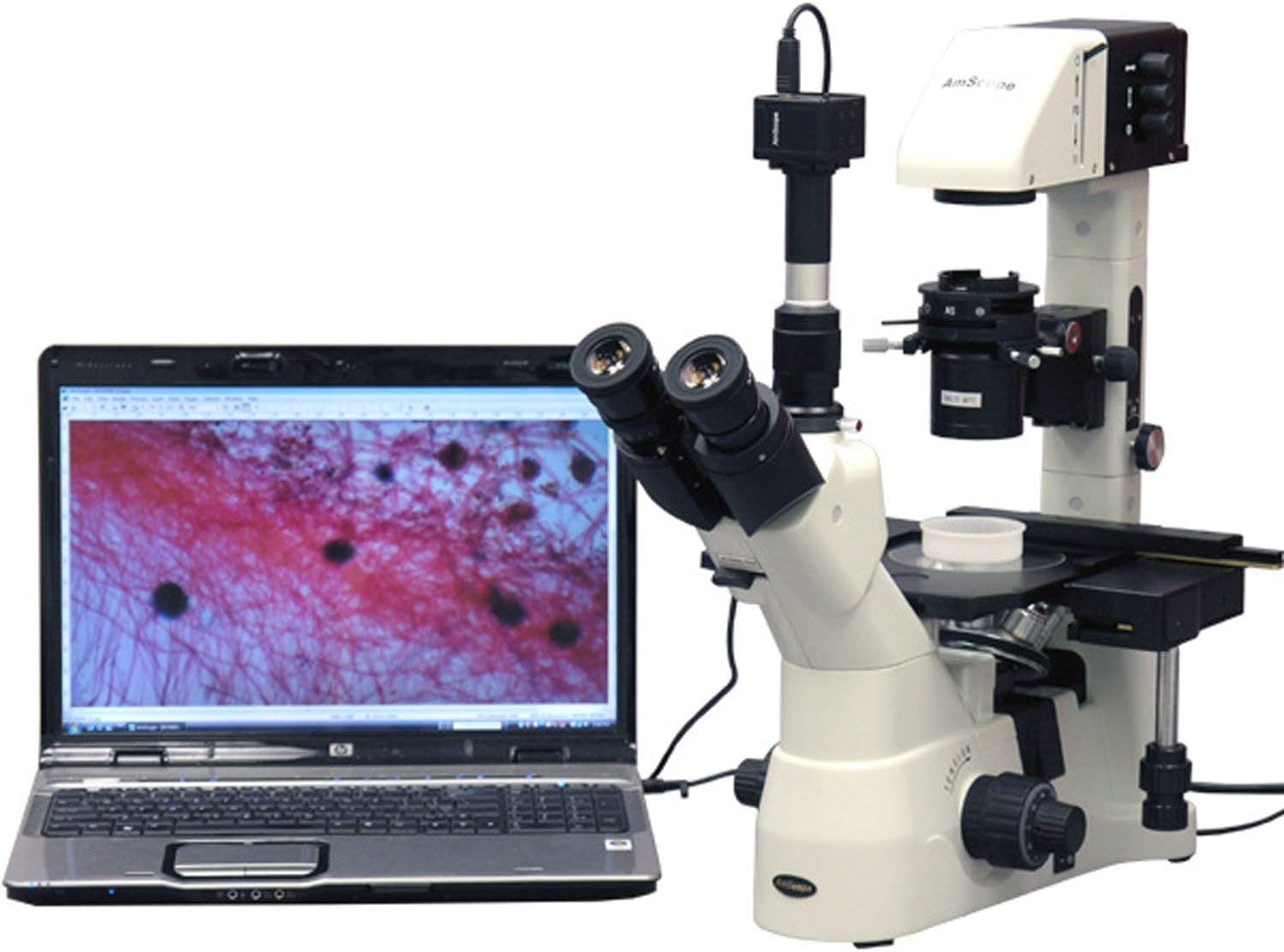

AmScope IN480TA-8M Digital Long Working-Distance Inverted Trinocular Microscope, 40x-900x, WH10x Plan and WH15x Super-Widefield Eyepieces, Brightfield and Phase-Contrast Objectives, 30W Halogen Illumination, 0.3/0.5 NA Kohler Condenser, Mechanical Stage, 90 to 240V, Includes 8MP Camera with Reduction Lens and Software

The AmScope IN480TA-8M digital inverted trinocular compound microscope has interchangeable pairs of 10x22mm and WH15x16mm plan high-eyepoint super-widefield eyepieces, an under-mounted quintuple nosepiece, eight DIN long working-distance infinity plan objectives, top-mounted Brightfield 30W halogen illumination, a 0.3 NA and 0.5 NA Kohler condenser with iris diaphragm, and a double-layer mechanical stage with a stage stop to protect slides and objectives from damage. The 8MP camera has a CMOS color sensor, a reduction lens, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The microscope has a color-corrected infinity optical system (CCIS) that provides color correction and improved focus of the intermediate image across the entire focal plane. The trinocular head has a Siedentopf binocular mount with 50 to 76mm interpupillary adjustment and a fixed 45-degree vertical inclination to reduce eye and neck strain. A Siedentopf binocular head enables the viewer to change the interpupillary distance without changing the tube length, eliminating the need to refocus the image. Anti-mold coatings protect the microscope in high-humidity environments. The microscope includes interchangeable pairs of high-eyepoint super-widefield WH10x22mm plan and WH15x16mm eyepieces. Plan eyepieces provide improved focus over the entire field of view (FOV). High-eyepoint eyepieces ease viewing for viewers who wear glasses. Dioptric adjustment accommodates individual eye-strength differences. The vertical trinocular port accepts a 23mm or C-Mount camera. The under-mounted quintuple nosepiece accepts up to five 20mm objectives at a time. The microscope includes five Brightfield long working-distance infinity plan objectives (4x, 10x, 20x, 40x, and 60x) and three phase-contrast long working-distance infinity plan objectives (10x, 20x, and 40x). Long working-distance plan objectives provide improved focus over the entire range of the viewing field and a longer working distance that is required when viewing specimens in dishes and large containers. Phase-contrast provides high contrast and visibility without the use of stains, allowing specimens to be observed in their natural state without being killed or fixed. An inverted microscope has its light source above the stage pointing downward and the objectives and turret below the stage pointing upward. It is most often used for observing organisms in a large container, such as a well plate or petri dish. It can also be used when specimens require manipulation, or in metallurgical applications. The 8MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector. The camera has 40x magnification and a 0.5x reduction lens that ensures that the display has a similar field of view as the microscope eyepiece. The camera can be mounted in a C-Mount or any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. Camera drivers are compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. The software includes Windows APIs for native C/C++, C#, DirectShow, Twain, and LabVIEW that enable custom application development. The camera has a USB 2.0 data port (cable included).Brightfield and phase-contrast illumination is mounted above the stage and has transmitted 30W halogen illumination. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background. The phase-contrast element aligns the light source with the phase-contrast objectives to optimize high contrast and visibility without the use of stains. Halogen illumination provides bright light in a concentrated path, and a rheostat controls the amount of light emanating from the lamp. The objectives are mounted on a turret to ease magnification changes. The Kohler condenser has a 0.3 and 0.5 NA to provide a long working-distance of 72mm and 28mm, respectively. Kohler illumination focuses and centers the light path using two iris diaphragms, providing optimum contrast and resolution. The horizon can be rotated 0 to 300 degrees. The double-layer mechanical stage with 1mm stage divisions and 0.1mm vernier resolution locks the slide into place and provides precise slide manipulation along the X- and Y-axis to allow coordinates to be recorded, enabling the viewer to return to a specific location on the slide. The oversize stage is 6.3 x 10 inches (160 x 250mm) (W x D, where W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back). It has a traveling range of 4-3/4 x 3-1/8 inches (X- direction x Y-direction). A petri dish holder secures specimens in place. Nested coaxial coarse and fine focus has tension-adjustable coarse focusing and an adjustable lock ring stopper that limits stage range to protect slides and objectives from damage. The focus system has a 38mm working distance, 2mm fine focus, and 0.002mm precision. The total working distance is 6.5mm upward and 2.5mm downward from focus. All-metal mechanical parts, solid-metal frame construction, and a stain-resistant enamel finish provide durability.Microscope SpecificationsHeadSiedentopf trinocularMagnification range40x-900xTrinocular port23mm or C-MountEyepieces (30mm)WH10x22mm plan and WH15x16mm planObjectives, Brightfield (20mm)4x, 10x, 20x, 40x, and 60x DIN long working-distance infinity plan objectivesObjectives, Phase-contrast (20mm)10x, 20x, 40x DIN long working-distance infinity plan objectivesStageOversize mechanical, with removable stage plateCondenserMovable 0.3 NA and 0.5 NA Kohler condenserLight sourceHalogen with rheostat, 12V/30WIllumination typeBrightfield, phase-contrastPower90V to 240V, GS and CE-certifiedCamera SpecificationsResolution8MP (3264 x 2448 effective pixels)Image typeStill image and video display and captureCamera typeBrightfieldCamera sensor1/2.5" Aptina Special CMOS (color)Magnification40xReduction lens0.5xMounting size23mm or C-MountFrame rate27fps at 800x600; 8fps at 1600x1200; 1.9fps at 3264x2448Computer connectionUSB 2.0 (backward compatible on PCs only)File formatsJPG, TIF, GIF, PSD, WMF, BMPSoftware packageImage capture and editing for Windows XP, Vista, 7, and 8; Mac OS X; and LinuxCamera driver compatibilityWindows XP, Vista, 7, and 8; Mac OS X; and LinuxMicroscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.What's in the Box?AmScope IN480TA-8M microscopeWH10x22mm plan eyepieces, 30mm, one pairWH15x16mm plan eyepieces, 30mm, one pair4x DIN long working-distance infinity plan objective, 20mm10x DIN long working-distance infinity plan objective, 20mm20x DIN long working-distance infinity plan objective, 20mm40x DIN long working-distance infinity plan objective, 20mm60x DIN long working-distance infinity plan objective, 20mm10xPH DIN long working-distance infinity plan phase-contrast objective, 20mm20xPH DIN long working-distance infinity plan phase-contrast objective, 20mm40xPH DIN long working-distance infinity plan phase-contrast objective, 20mmColor filters8MP digital camera (MU800)0.5x reduction lensUSB 2.0 cableSoftware CDReflected illuminations system with top light housing and electrical cordEpiscopic light box and tubePower cordDust coverInstructions

• Digital inverted compound microscope for observation of biological cultures or specimens within well plates, petri dishes, or vials that require a longer working distance, and an 8MP camera with reduction lens and USB 2.0 output for capturing or displaying images on a computer or projector
• Trinocular head with Siedentopf binocular mount, pairs of 10x22mm and WH15x16mm plan high-eyepoint super-widefield eyepieces, 50 to 76mm interpupillary adjustment, and fixed 45-degree vertical inclination; vertical port accepts C-Mount or 23mm camera
• Color-corrected infinity optical system (CCIS) with under-mounted quadruple nosepiece, five long working-distance infinity plan objectives and three long working-distance phase-contrast infinity plan objectives that provide a longer working distance and improved focus over the entire viewing field
• Upper-mounted rheostat-controlled 30W halogen illumination provides clear examination and light control and movable 0.3 NA and 0.5 NA Kohler condenser provides long working distance
• Oversize mechanical stage with petri dish holder and tension-adjustable coaxial coarse and fine focus
