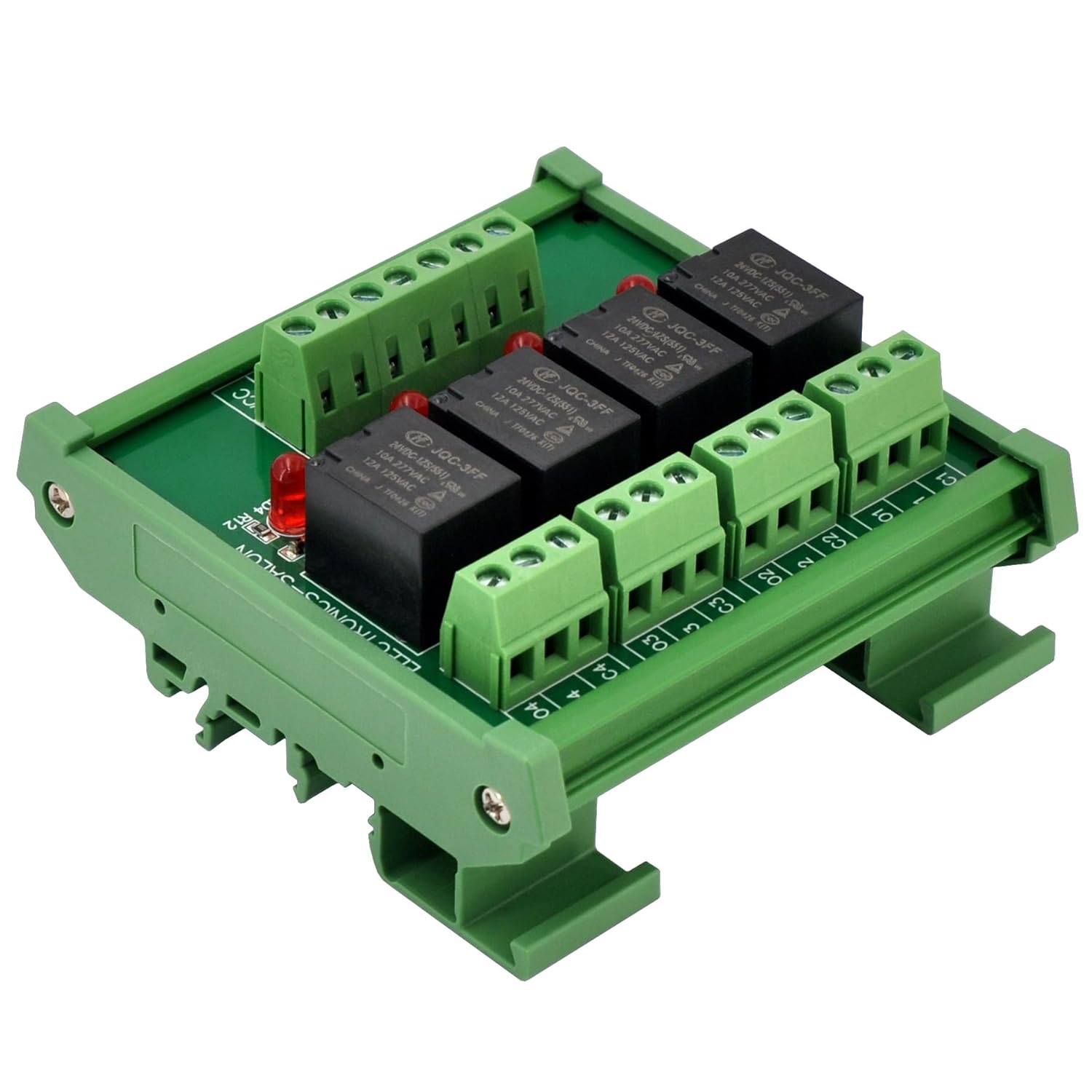

Electronics-Salon DIN Rail Mount 4 SPDT 10Amp Power Relay Interface Module, DC 24V Version.
4.0 (22 items)
Limited Time SaleUS$19.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211059239 | Release Date | 2026/04/04 | List Price | US$12.80 | Model Number | 211059239 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
4 Channel SPDT power relay interface module, high quality JS1-24V-F 10Amp relays. Darlington transistor circuits drive relay coil, LED indicator for each relay channel. High quality screw terminal block. FR-4 fiber glass PCB, dual copper layers. Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.Operating Voltage / Current (VCC): 18 to 36VDC / 120mA(at 24VDC). Control signal voltage (IN-X): 0V - 0.5Vdc (low level), relay not action. 2.5V - 24Vdc (high level), relay action.Output (relay switch) contact rating for each channel: For AC, 125 / 250 VAC, 10Amp For DC, 30 VDC, 5AmpExternal dimensions: L82mm x W87mm x H43mm. PCB dimensions: L80mm x W72mm x H15.5mmThe item no paper specifications, before buy please download the PDF datasheet: https://images-na.ssl-images-amazon.com/images/I/91NGZd-qx9L.pdf
- 4 Channel SPDT power relay interface module, high quality JS1-24V-F 10Amp relays.

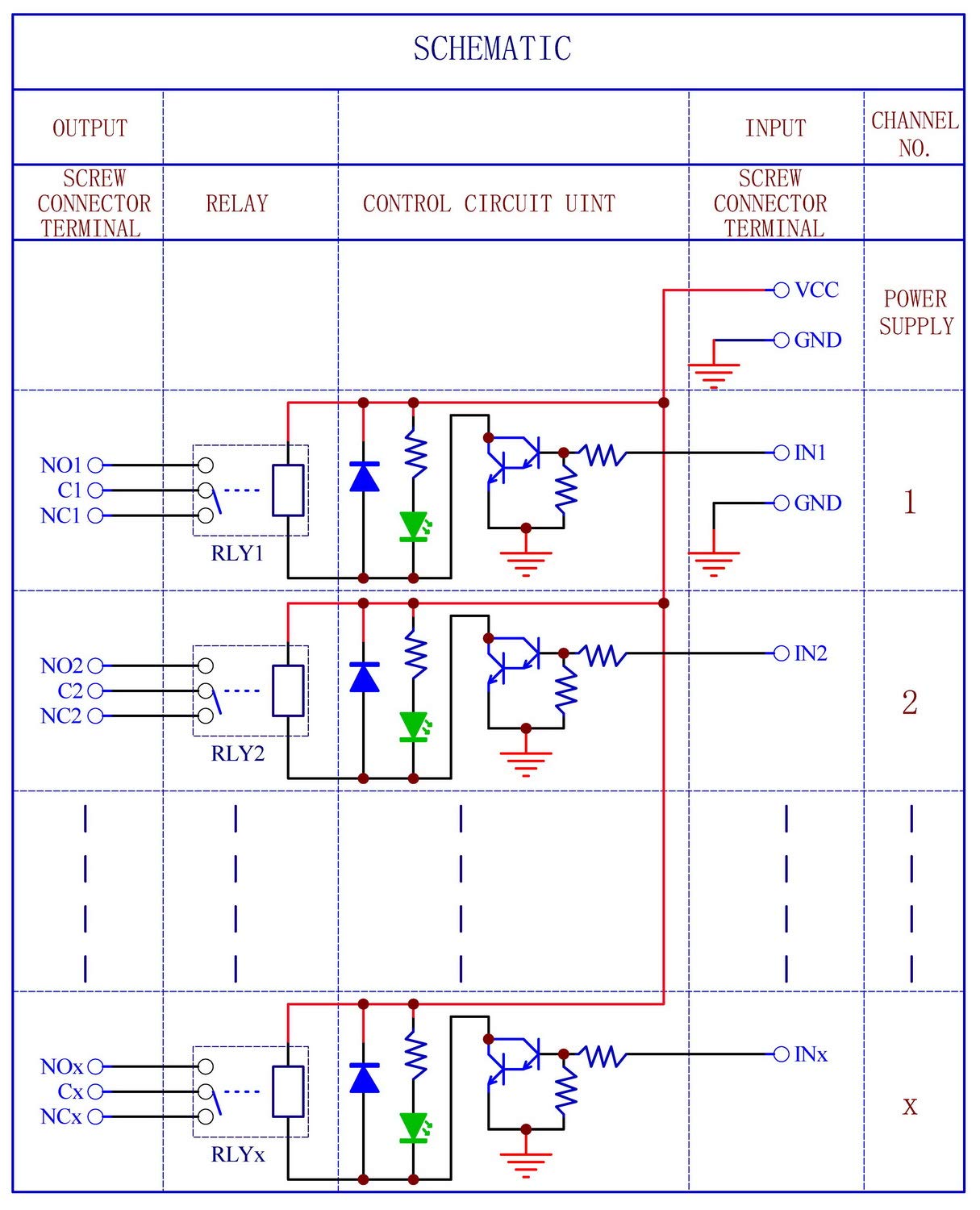

- Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
- High quality screw terminal block, FR-4 fiber glass PCB, dual copper layers.
- Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
| Brand Name | Electronics-Salon |
|---|---|
| Part Number | MD-D229T/24V-1 |
| Coil Voltage | 24 Volts |
| Contact Type | Spdt |
| Manufacturer | Electronics-Salon |
| Mounting Type | DIN Rail Mount, Panel Mount |
| Connector Type | Screw |
| Current Rating | 5 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Specification Met | Din |
| Contact Current Rating | 10 Amps |
| Maximum Switching Current | 10 Amps |
| Maximum Switching Voltage | 24 Volts |
| Minimum Switching Voltage | 24 Volts |
