LCR-ST1 Digital LCR Meter Tweezer,esr meter,Multimeter, Capacitance Inductance Continuity Diode Tester Measures R/C/L Diodes Voltage Up to 30V for SMD Electronic Components Testing Analyze(high)

Features:The LCR-ST2 is a versatile portable test instrument that accurately measures resistance, capacitance, inductance, and diodes, and can measure voltages up to 30V. Utilizing advanced measurement technology, the LCR-ST2 ensures high accuracy and stability.It features a 1.47-inch high-definition color display and a magnetic mounting design, enhancing ease of use and portability. A built-in 300mAh lithium battery provides extended battery life. The instrument supports five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.Its unique clamp-style design is particularly suitable for delicate work in confined spaces, enabling for rapid testing of electronic components. Furthermore, the LCR-ST2 offers a scanning function, capable of quickly scanning component parameters across the entire frequency range (100 Hz to 100 kHz) and acquiring multi-frequency data with a single press, enabling accurate component characteristic analysis.The intelligent sorting function automatically classifies and filters components, significantly improving batch testing efficiency. The dual-mode simultaneous display function allows two measurement modes to be displayed on the same screen, facilitating direct comparison and making result analysis more intuitive. The LCR-ST2 is lightweight and portable, making it an indispensable and efficient tool for field engineers and laboratory applications.Specifications:Part Name: LCR-ST2 2-in-1 Digital LCR ESR Clamp MeterMaterial: ABSModel: LCR-ST2Screen: 1.47-inch HD Color ScreenBattery: 300mAh Lithium BatteryBattery Life: Approx. 3 hoursCharging Interface: Type Csize: 31 × 170.7 × 20.3 mmOperating Temperature: 0℃–50℃ (≤75%RH)Storage Temperature: -20℃ to 60℃ (≤75%RH)Auto Power Off: Never / 5 minutes / 15 minutes / 30 minutesLanguage: English / ChineseCalibration: Open Circuit / Short Circuit / Multi-Resistor CalibrationAdjustable Screen Brightness and VolumeAuto Recognition (R/C/L)Capacitance Range: 1pF–22mFInductance Range: 1μH–10HResistance Range: 10mΩ-10MΩDiode Forward Voltage Detection: ≤0.7 VVoltage Range: ±30VFrequency Scan (100 Hz-100 kHz)Package Contents:LCR-ST2 Component 11. Main Unit LCR-ST2 + Clip-on Fixture2. Storage Bag3. Bent Tip4. Cutting Board5. Data CableLCR-ST2 Component 21. Main Unit LCR-ST2 + Clip-on Fixture2. Storage Bag3. Bent Tip4. Cutting Board5. Kelvin Test Segment6. Data CableNote:Light and different monitors may cause the color of the items in the picture to be slightly different from the actual item. The allowable measurement error is +/- 1-3 cm.

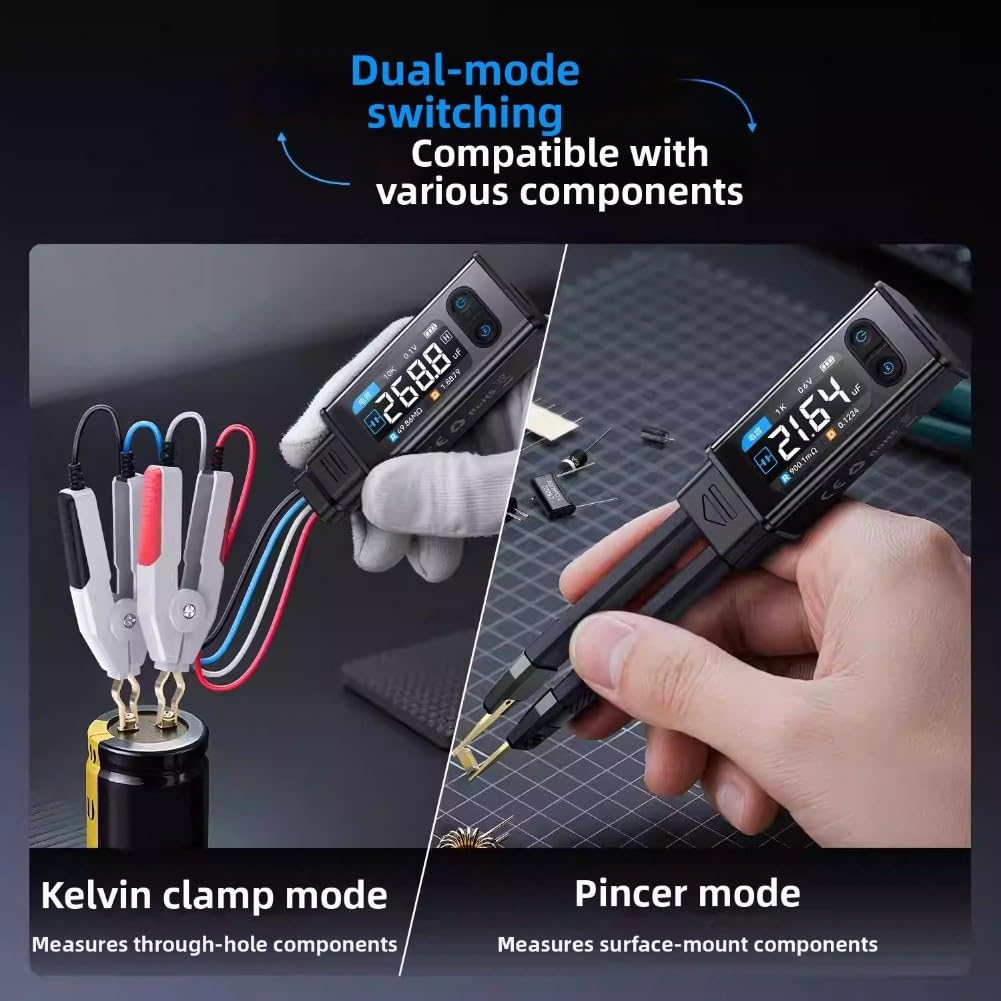

• Precision Multi-Function Testing: LCR-ST2 2-in-1 digital bridge tweezers offer accurate measurement of resistance, capacitance, inductance, diodes, and voltages up to ±30V, making it highly suited for SMD test Kelvin clip applications in lab or field work.
• Clear HD Display & Easy Operation: Equipped with a 1.47-inch color screen, adjustable brightness and volume, plus dual-mode simultaneous display for real-time data comparison, delivering intuitive analysis even in complex measurement scenarios.
• Flexible Frequency Scan Capability: Supports five selectable test frequencies—100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz—with scanning function covering 100 Hz–100 kHz, enabling for rapid multi-frequency data acquisition in a press for component characteristic analysis.
• Smart Sorting Efficiency: Intelligent auto recognition of R/C/L and sorting functions significantly boost batch testing efficiency, while clamp-style design allows safe handling of delicate components in confined spaces without compromising accuracy.
• Portable Power & Complete Kit: Lightweight ABS body with magnetic mount and long lasting 300mAh lithium battery (~3 hours run time, Type-C charging) includes clip-on fixture, storage bag, bent tip, cutting board, data cable, and Kelvin test segment for versatile tasks.
