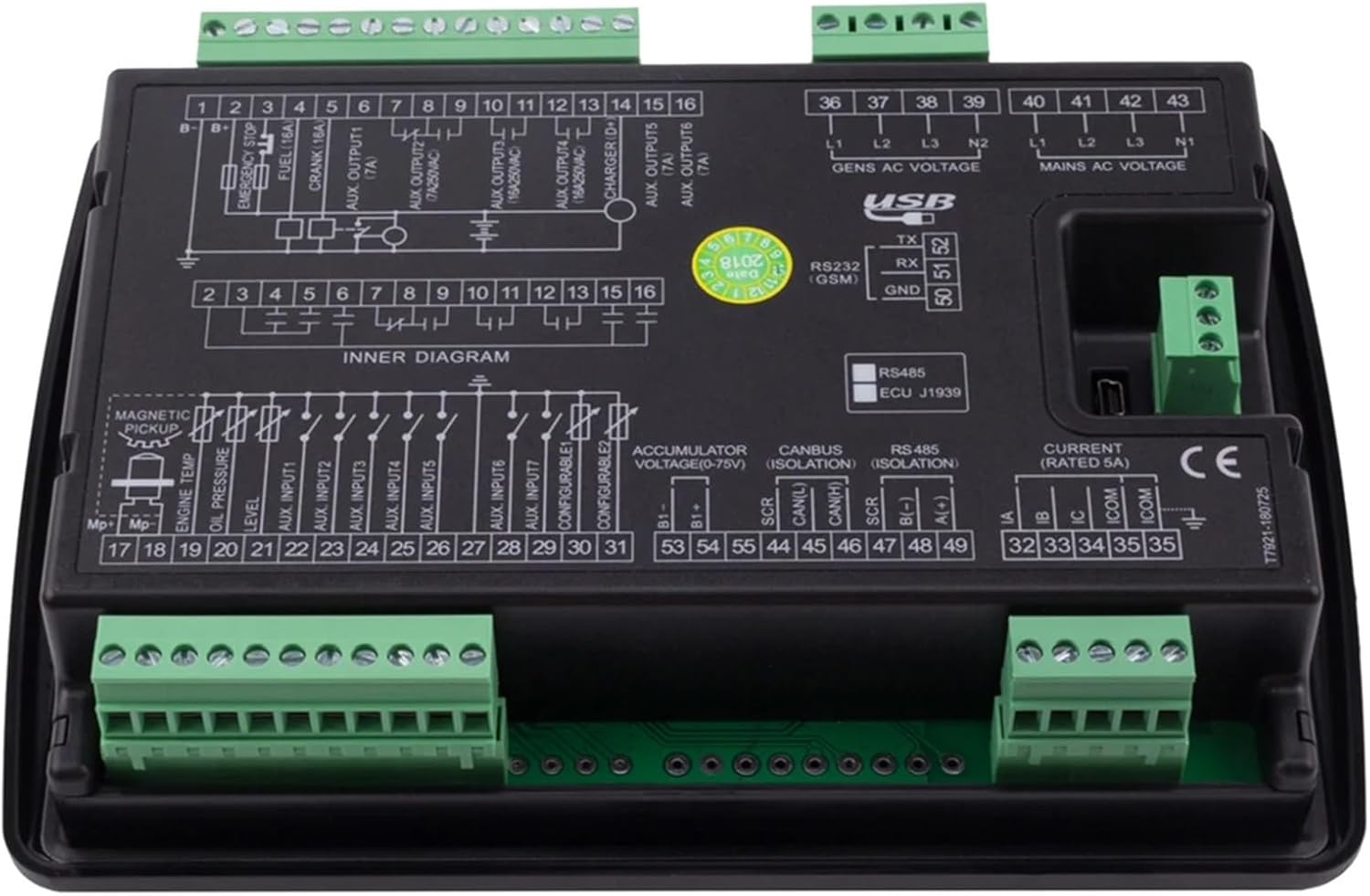

LXC6110E AMF Diesel Generator Set Controller Auto Start Controller Genset Parts Electronic Intelligentpanel LXC6120E(LXC6120E)

Electronic Engine ControlLXC6110E genset diesel engine control panelDescription----------LXC6110E series of power plant automation controller for the automation and monitoring system of a single diesel generator sets, use 32-bit microprocessor technology, achieve generator sets automatic boot/shutdown, the precision measurement of various parameters, alarm protection and three remote function.The controller uses a large-screen (240*128LCD)graphics display, all the important parameters can be displayed in page, save the page. At the same time can be displayed Chinese.English and other languages, all parameters can be adjusted from the controller panel, can also be a PC through a USB interface tweaks and RS485 or GPRS remote adjustment and monitoring.Its structure is compact, simple wiring, high reliability, automation control systems are widely used in all types of generator sets and fire pumps.Product Performance1)The average load rate, by calculating the load rate, detect genset load operation, avoid overload operation.2)Custom boot interface, user can add your own contact information, company name, , slogan, etc.3)Installment payment service, through the password form to manage gensets.4)Maintenance remind, Accumulative total run time automatically, Timely remind maintenance.5)Big screen (240 * 128) display, on a page can browse all the data, avoid frequent page breaks.6)Multi-language selection, Support Chinese, English, Russian and Spanish.7)USB connection, and play, convenient for debugging and application.8)200 fault records, detailed record 25 parameters of failure moment, easy to analyze the failure reasons.9)Real-time clock automatically timed training run, programmable 2 sets of training time.10)Collect and display mains overvoltage, under voltage, over frequency, low frequency, loss phase and anti-phase warning function.11)Level 2 different identities password, Plus a one-time temporary password, Safe and reliable.Features of Controllers1)The first one in have USB and RS232 standard controller interface , customers do not have to spend extra money and time to buy the interface adapter.2) The first one in launch of the generator controller with black box records.This function can record genset failure instant data to provide data basis for repairs, remote fault analysis, resolve problems quickly.3)The first one in use of technology to automatically adjust the contrast on the generator controller , this technology can automatically adjust the contrast according to the ambient temperature to achieve from -32 ° C ~ 65 ° C temperature range can be displayed properly.Operating VoltageDC8.0V to DC35.0V,Continuous Power Supply.Power Consumption<;3W(standby:2W)Alternator Input Range15V - 360 V AC (ph-N)3-Phase4-Wire26V - 620 V AC (ph-ph)3-Phase3-Wire15V - 360 V AC (ph-N)Single-phase2-wire15V - 360 V AC (ph-N)2-Phase3-Wire:Alternator Frequency50/60HzSpeed Sensor voltage VPP2.2 - 100Vpp (Peak to peak)Speed Sensor Frequency10000Hz (max)Start Relay Output16Amp Controller Power Voltage OutputFuel Relay Output16Amp Controller Power Voltage OutputProgrammable Relay Output 17Amp 250VAC Voltage Free OutputProgrammable Relay Output 27Amp 250VAC Voltage Free OutputProgrammable Relay Output 316Amp 250VAC Voltage Free OutputProgrammable Relay Output 416Amp 250VAC Voltage Free OutputCase Dimension210mm x 152 mm x 48 mmPanel Cutout186mm x 141mmC.T. Secondary5A RatedWorking ConditionsTemperature: (-25~+70)°C Humidity:(20~90)%Storage ConditionTemperature::(-40~+85)°CProtection LevelIP55:When waterproof rubber seal installed between the controller and panel fascia.IP42:When waterproof rubber seal is not installed between the controller and panel fascia.Insulating IntensityObject: input/output/powerQuote standard: IEC688-1992Test way: AC1.5kV/1min leakage current:3mAWeight0.9kg
