MATRIX Linear Programmable DC Power Supply MPS-100C 30V 5A, RS-232 RS-485, Bench Power Supply Variable 1mV 0.1mA High Resolution, 9 Sets Storage, List Output Editing for Lab, Electronic Repair
5.0 (120 items)
Limited Time SaleUS$143.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211769428 | Release Date | 2026/04/04 | List Price | US$96.00 | Model Number | 211769428 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Added RS-232/485 Interface DC Power Supply: MATRIX MPS-100C linear power supply rated output 0-30V 0-5A, resolution of 1mV/0.1mA high-precision 5-bit display of voltage current and power at the same. Dc power supply MPS-100C added RS-232+485 Interface, support SCPI and MODBUS commands, enhancing connectivity options for your versatile needs. The adjustable power supply with low ripple and low noise, stable and reliable, fully functional and powerful
- List Sequence Programmable DC Power Supply: The variable dc power supply supports single-machine list editing and output function. Our power supplies easily create output sequences by setting single-step voltage, current, and delay time, specifying the number of repetitions, and saving sequence files. Once programmed, the dc power supply executes the sequence upon receiving a trigger signal. This streamlines tests saves time, and boosts work efficiency.

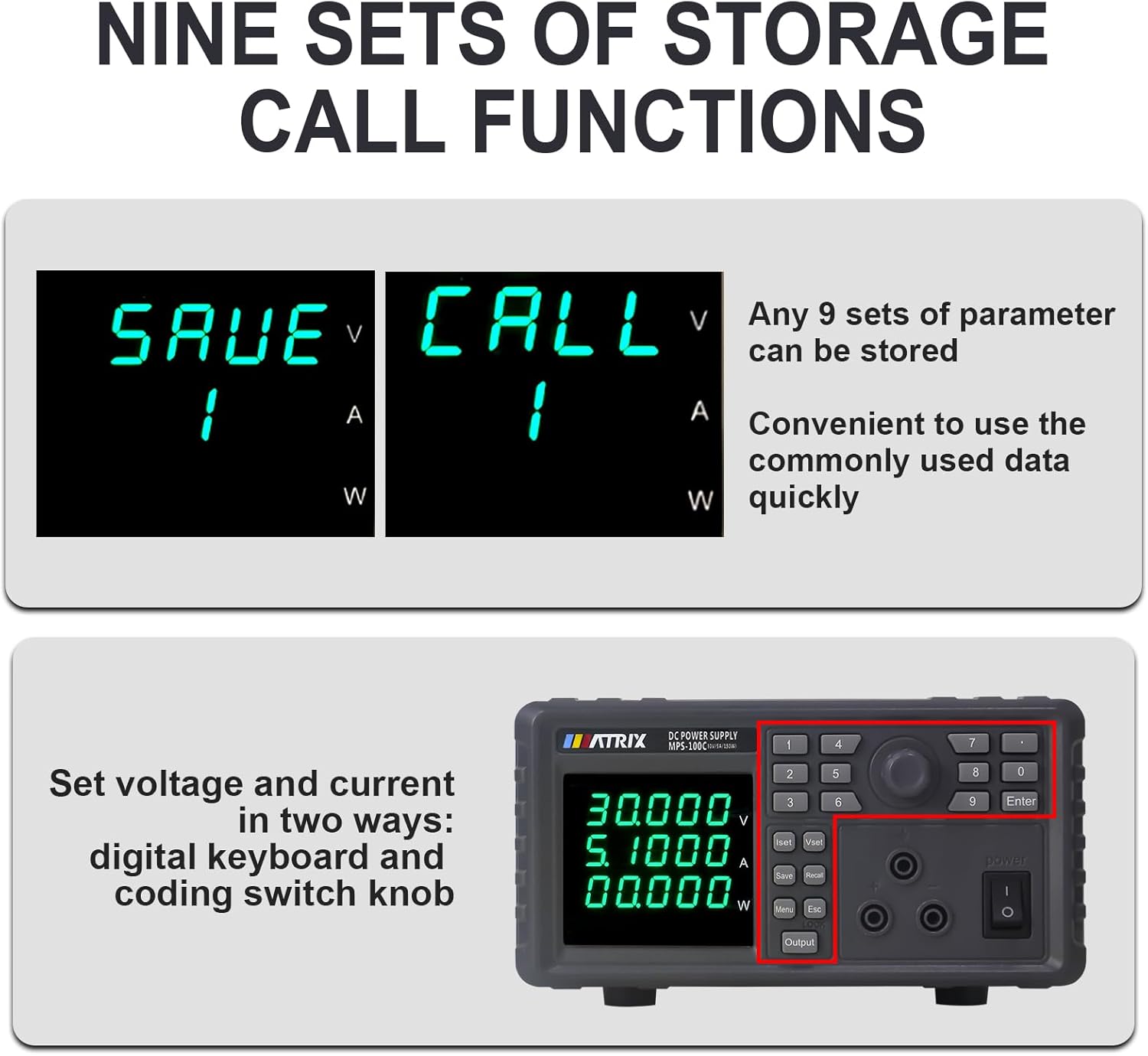

- 9 Groups of Preset Memory: The programmable dc power supply supports 9 groups of voltage and current storage and calls out functions for use at any time without repetition. Set the voltage and current of the variable dc power supply by digital keyboard and knob two ways. The output switch controls the output of the bench dc power supply and prevents damage. The dc power supply adopts a coding switch, which is convenient and fast to use, anti misadjustment and has a longer service life
- Enhanced User Experience: Enjoy a fully equipped configuration of the linear dc power supply with six-level adjustable LED display brightness, the ability to monitor the internal temperature of the adjustable power supply, and a convenient button sound on/off option. And our one-click initialization function makes this programmable power supply adaptable and user-friendly.
- Multiple Protections, Intelligent Cooling Fan: The linear DC power supply built-in intelligent fan moves with the load, and unique duct design to maintain coolness, making your usage environment quieter. The dc power supply variable also comes with multiple protection of interval voltage and current settings, over-voltage, over-current, and over-temperature powerful protection functions. We offer a 3-year warranty. Feel free to contact us anytime for any inquiries or issues
| Brand | MATRIX |
|---|---|
| Color | Darkgray |
| Amperage | 5 Amps |
| Form Factor | ATX |
| Item Weight | 9.9 Pounds |
| Manufacturer | MATRIX TECHNOLOGY INC. |
| Model Number | 30V 5A RS232/485 |
| BuiltIn Media | LAB POWER SUPPLY |
| Maximum Power | 150 Watts |
| Output Current | 5 Amps |
| Output Voltage | 30 Volts |
| Output Wattage | 150 Watts |

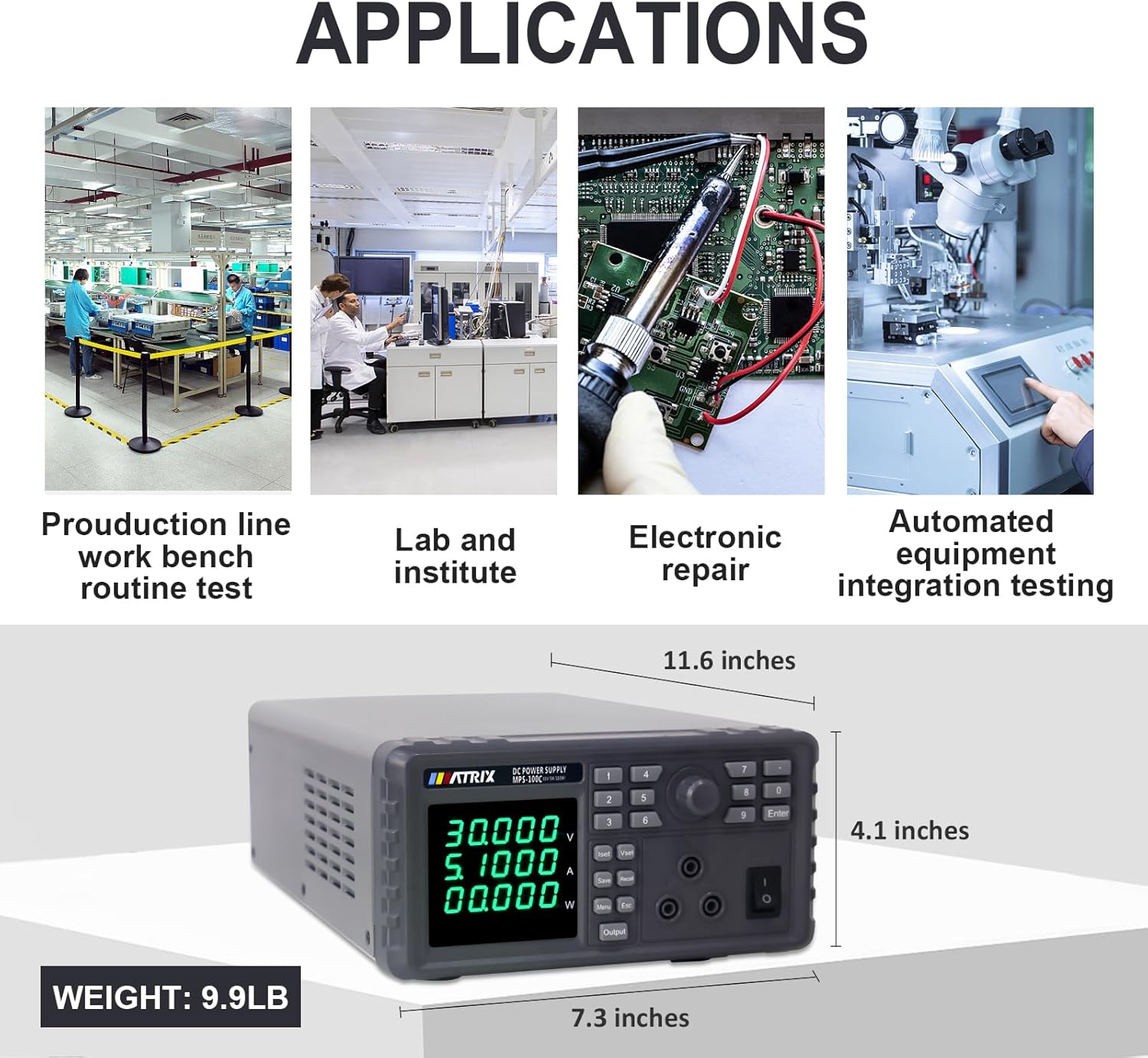

| Item Dimensions | 7.3 x 11.6 x 4.1 inches |
| Mfr Part Number | MPS-100C |
| Enclosure Material | Aluminum, Metal |
| Warranty Description | 3 year manufacturer |
| Connector Type Used on Cable | ATX |
| EU Spare Part Availability Duration | 3 Years |
