RF4463F30 1W 30dBm High Power SI4463 915Mhz SPI Interface FSK Wireless Transceiver Module x 4 PCS

Package:4 PCS * RF4463F30 ( 915Mhz )4 PCS * Rubber Antennas4 PCS *SMA Connect cablesFeatures:Frequency Range: 915MHZSensitivity up to -126 dBmMaximum output power: +30dBm10mA@receiver statusData transfer rate: 0.1-1000 kbpsGFSK, 4GFSK3.3-6.5 V Power supplyUltra-low consumption shutdown modeDigital received signal strength indicator /RSSITimed wake-up functionThe antenna automatically match and two-way switch controlConfigurable packet structurePreamble detection64/128byte transmit and receive data register FIFOLow-power detectionTemperature sensor and 8-bitanalog-to-digital converters.Operating Temperature Range:-40 ~ + 85°CIntegrated voltage regulatorFrequency hoppingPower-on reset functionBuilt-in crystal adjustment function ApplicationRemote controlRemote meter readingndustrial controlhome automation remote sensingIndividual data recordssensor networktire pressure monitoringhealth monitoringwireless PC peripheralstag reading and writing

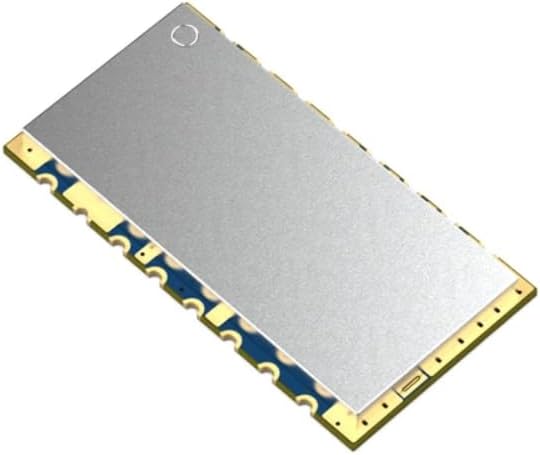

• RF4463F30 is 1W RF module embedded with amplifier and LNA circuit.High quality of component, tightened inspection and long term test make this module reliable for long time, long distance communication in varies environment.
• RF4463F30 adopts Silicon Lab si4463 RF chip, which is a highly integrated wireless ISM band transceiver (EzradioPro2).
• The features of high sensitivity (-126 dBm), +30 dBm output power, 10PPM crystal, and good RF matching circuit make this module work well in hot/cold environment with reliable communication and long distance.
